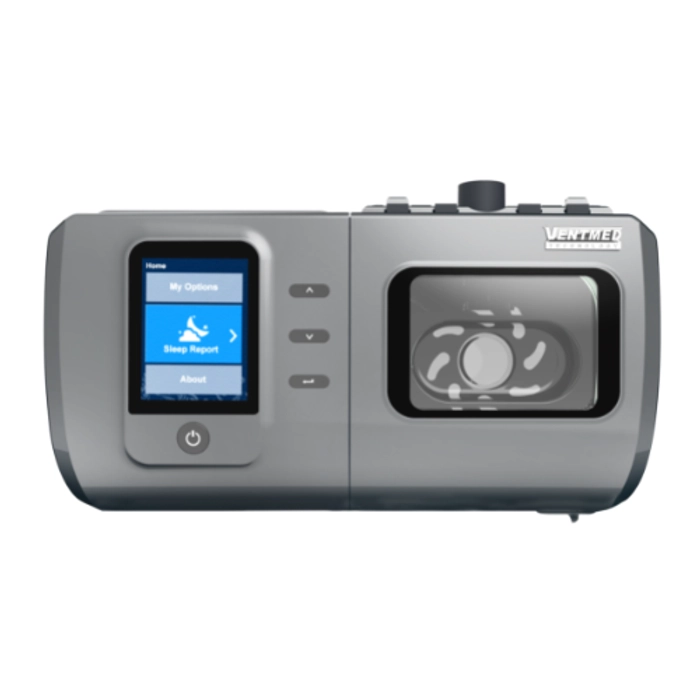

Ventmed ST30 (DS8) Bipap Machine
Select quantity
Product details
- Capable of saving over 20 hours of real-time data and over 1 year of records
- Display of airflow and pressure waves on the screen
- Uses an SD card for data communication
- Incorporates advanced technologies
- Has a sleek and modern design for bedroom appeal
- Features EPR (Expiratory Pressure Relief)
- Auto-Leak Compensation and Auto-Altitude Compensation
- Alarm to turn off the power
- Has an independent airflow channel
- 2.8" TFT screen with large display shows airflow and pressure
- Parameters are locked and cannot be altered once set.
Â
Specifications:
- Work Mode - CPAP, Auto, S, T, ST, APCV
- Color - Grey
- Sound - <28 dB
- Screen - 2.8 inch TFT, 320 x 240
- Pressure Range - 4-30 cmH2O
- IPAP - 4-30 cmH2O
- EPAP - 4-20 cmH2O
- Data Storage - SD Card
- Power Supply Input - 100-240V, 50-60Hz, 1-2A; Output + 24V, 2.5A
- DC Voltage - 24VDC, 2.5A
- Over-Temperature Protection - Stop automatically, alarm with 4 times
- Lock Function - Yes
- Water Capacity - 220ML max
- Humidifier Level - Integrated Heated, 0-5 level
- Dimensions(cm) - 28L x 14W x 9.5H(machine); 38.5L x 36.5W x 16H(1pc carton)
- Weight(with humidifier) - 1.6Kg(net weight); 3.9Kg(gross weight
